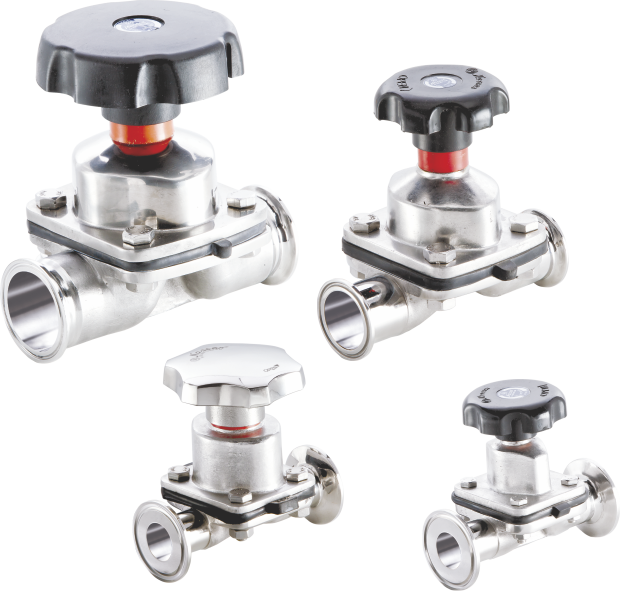

MODEL – 260M*
Description: 2/2 way Sanitary Manual Diaphragm Valve (for Autoclavable application refer Mascon).
Size / End Conn.: DN 8 to DN 80 / Hose nipple / Butt weld end and Triclover end. For above sizes consult us.
MOC: STD – ASTM A 351 Gr. CF3M
Diaphragm: STD – EPDM, EPDM backed by PTFE, Optional – Silicon
Temp.: STD – 8O°C Optional –14O°C Actuator: STD – Manual – ABS, SS 304 wheel
