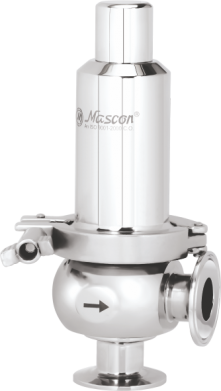

MODEL – SSRV* (Sanitary Safety Relief Valve)
Description: SSRV – Pop Off Type Sanitary Safety Relief Valve.
Size / End Conn.: DN 15 to DN 50 / Butt weld and Triclover end
Orifice Size: DN 15 to DN 40 – ∅15mm
DN 50 – ∅22mm
MOC: STD – ANSI SS 316L (TP 1.4404)
Spring: SS 304
Set Pressure: 1.0 to 4.5 Bar
Temp.: 130°C (Safe working temperature, please refer to Mascon for temp. above 130°C)
